Deskrizzjoni tal-Prodott

Il-biċċiet dritti ta 'drill ta' shank twist minn Myook hija għodda ta 'qtugħ premium iddisinjata għat-tħaffir ta' preċiżjoni f'diversi materjali.

Karatteristiċi tal-Prodotti tagħna

1.High - Kostruzzjoni ta 'kwalità: Magħmul minn materjali premium għal durabilità eċċezzjonali.
2. Tħaffir tal-preċiżjoni: Id-disinn Twist jiżgura toqob preċiżi u nodfa f'diversi materjali.
3.Straight Shank: Jipprovdi stabbiltà u immaniġġjar faċli waqt operazzjonijiet ta 'tħaffir.
4. Użu Versatili: Adattat għat-tħaffir fil-metall, injam, plastik, u aktar.
5. Evakwazzjoni taċ-ċippa effiċjenti: Id-disinn tal-flawt jippermetti tħaffir bla xkiel mingħajr imblukkar.
Il-prodott tagħna huwa għażla affidabbli għall-professjonisti fil-kostruzzjoni, il-manifattura, u industriji oħra. Investi f'dan it-drill għal produttività u eżattezza mtejba fil-bżonnijiet tat-tħaffir tiegħek. U dan il-prodott huwa 11.5mm HSS - CO drill drill drill għall-grad SS.

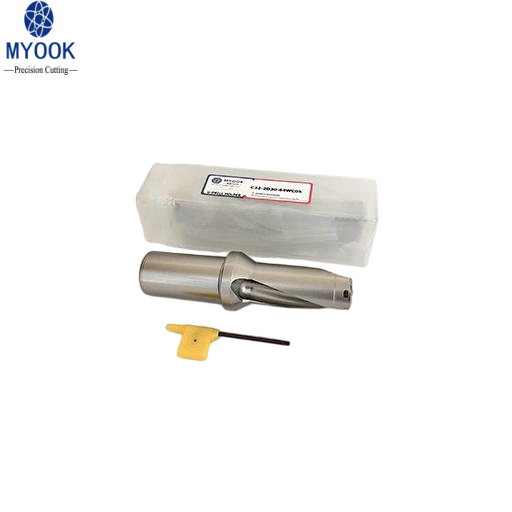

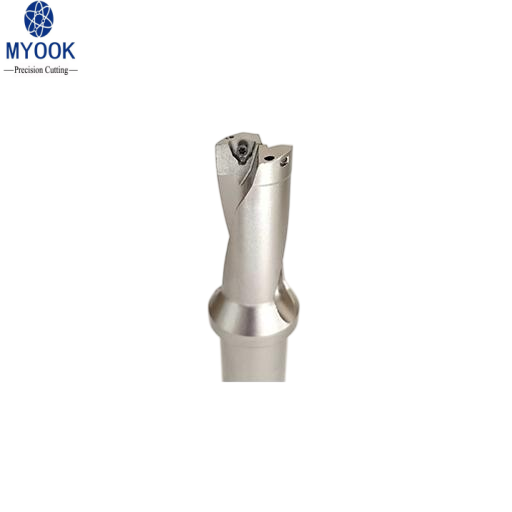

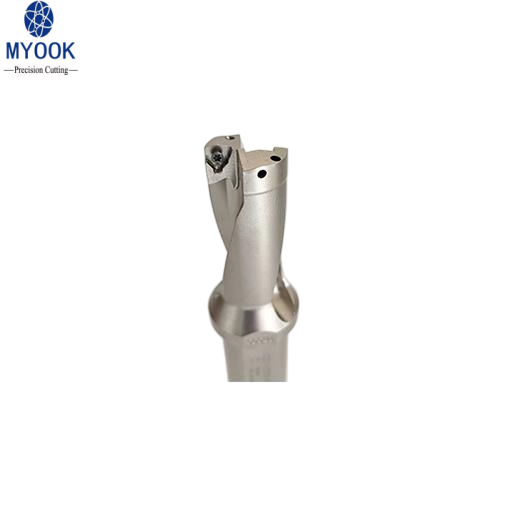

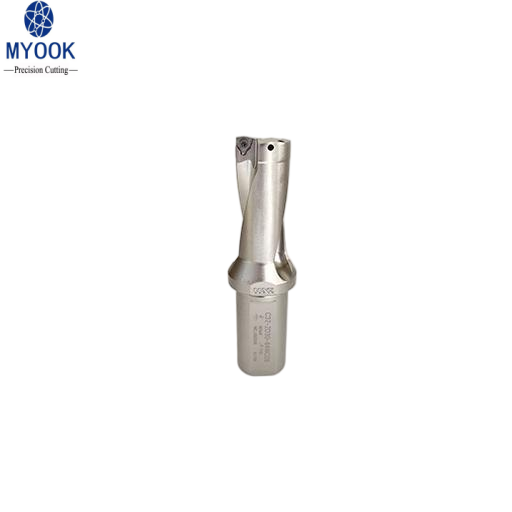

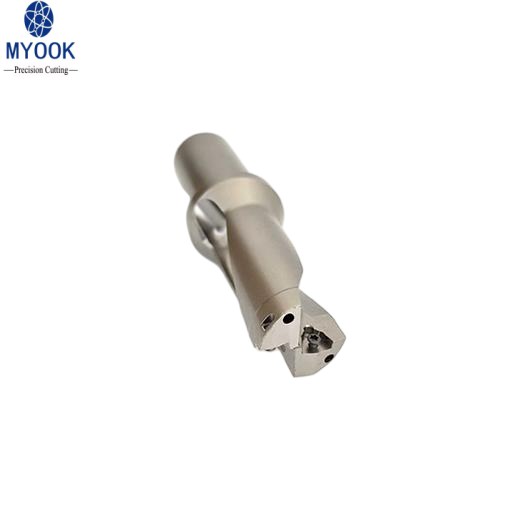

Ritratti dettaljati

Parametri tal-prodott

Aħna nipproduċu wkoll mudelli oħra relatati, il-figura li ġejja turi d-dejta tal-mudell standard. Jekk għandek xi ħtiġijiet standard jew mudell speċjali oħra, jekk jogħġbok tħossok liberu li tikkomunika magħna.

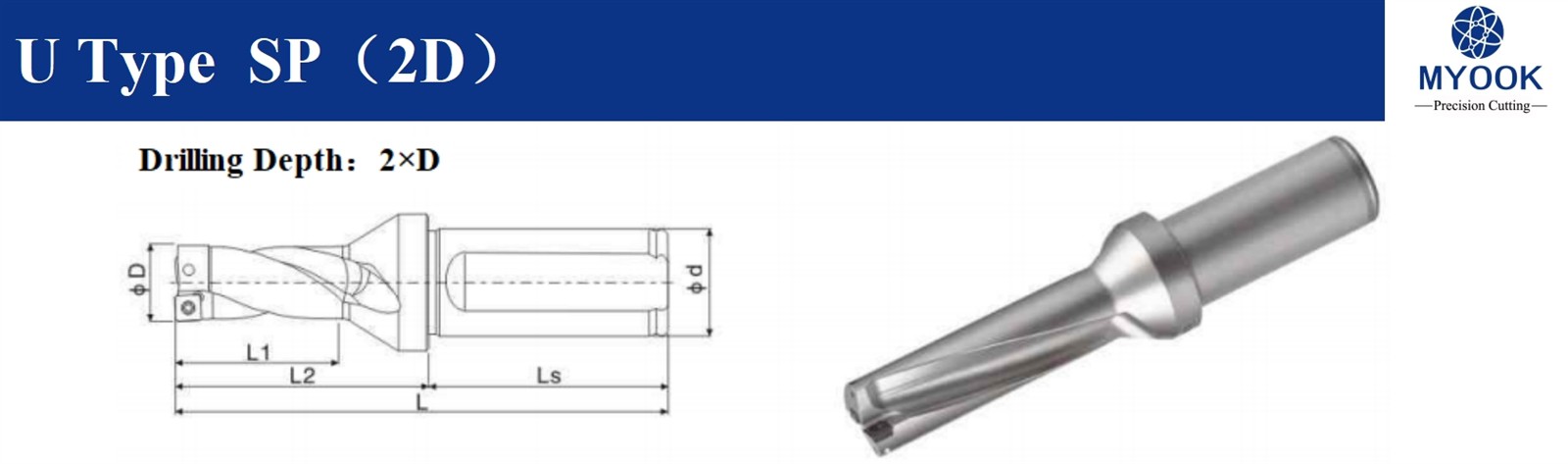

product-1686-498

Tip	Dimensjoni					Inserzjonijiet disponibbli	Kamin	Wrench
Tip	D	d	L1	Ls	L	Inserzjonijiet disponibbli	Kamin	Wrench
C20-2D13-29SP05	13	20	29	44	88	SP 050204	M2×4	T6
C20-2D13.5-30SP05	13.5		30		89
C20-2D14-31SP05	14		31		90
C20-2D14.5-32SP05	14.5		32		91
C20-2D15-33SP05	15		33		92
C20-2D15.5-34SP06	15.5	25	34	44	93	SP 060204	M2.2×5	T7
C20-2D16-35SP06	16		35		94
C20-2D16.5-36SP06	16.5		36		95
C20-2D17-37SP06	17		37		96
C25-2D17.5-38SP06	17.5	25	38	56	109
C25-2D18-39SP06	18		39		110
C25-2D18.5-40SP06	18.5		40		111
C25-2D19-41SP06	19		41		112
C25-2D19.5-42SP06	19.5		42		113
C25-2D20-43SP06	20		43		114
C25-2D20.5-44SP06	20.5		44		115
C25-2D21-45SP06	21		45		116
C25-2D21.5-46SP06	21.5		46		117
C25-2D22-47SP07	22	25	47	56	118	SP_07T308	M2.5×6	T8
C25-2D22.5-48SP07	22.5		48		119
C25-2D23-49SP07	23		49		123
C25-2D23.5-50SP07	23.5		50		124
C25-2D24-51SP07	24		51		125
C25-2D24.5-52SP07	24.5		52		126
C25-2D25-53SP07	25		53		127
C32-2D25.5-54SP07	25.5	32	54	60	134
C32-2D26-55SP07	26		55		135
C32-2D26.5-56SP07	26.5		56		136
C32-2D27-57SP07	27		57		137
C32-2D27.5-58SP07	27.5		58		138
C32-2D28-59SP09	28	32	59	60	139	SP_090408	M3.5×8	T15
C32-2D28.5-60SP09	28.5		60		140
C32-2D29-62SP09	29		62		143
C32-2D29.5-63SP09	29.5		63		144
C32-2D30-64SP09	30		64		148
C32-2D30.5-65SP09	30.5		65		149
C32-2D31-66SP09	31		66		150
C32-2D31.5-67SP09	31.5		67		151
C32-2D32-68SP09	32	32	68	60	152	SP 090408	M3.5×8	T15
C32-2D32.5-69SP09	32.5		69		153
C32-2D33-70SP09	33		70		154
C32-2D33.5-71SP09	33.5		71		155
C32-2D34-72SP11	34	32	72	60	156	SP_110408	M4×10	T15
C32-2D34.5-73SP11	34.5		73		157
C32-2D35-74SP11	35		74		158
C32-2D35.5-75SP11	35.5		75		159
C32-2D36-76SP11	36		76		160
C32-2D36.5-77SP11	36.5		77		161
C32-2D37-79SP11	37		79		169
C32-2D37.5-80SP11	37.5		80		170
C32-2D38-81SP11	38		81		171
C32-2D38.5-82SP11	38.5		82		172
C32-2D39-83SP11	39		83		173
C32-2D39.5-84SP11	39.5		84		174
C40-2D40-85SP11	40	40	85	70	185
C40-2D41-87SP11	41		87		187
C40-2D42-89SP14	42		89		189	SP 140512	M5×11	T20
C40-2D43-91SP14	43		91		191
C40-2D44-93SP14	44		93		193
C40-2D45-95SP14	45		95		195
C40-2D46-97SP14	46		97		197
C40-2D47-99SP14	47		99		199
C40-2D48-101SP14	48		101		201
C40-2D49-103SP14	49		103		203
C40-2D50-105SP14	50		105		205
C40-2D51-107SP09	51	40	107	70	207	SP 090408	M3.5×8	T15
C40-2D52-109SP09	52		109		209
C40-2D53-111SP09	53		111		211
C40-2D54-113SP09	54		113		213
C40-2D55-115SP09	55		115		215
C40-2D56-120SP09	56		120		222
C40-2D57-122SP09	57		122		224
C40-2D58-124SP09	58		124		226
C40-2D59-126SP09	59		126		228
C40-2D60-128SP09	60		128		230

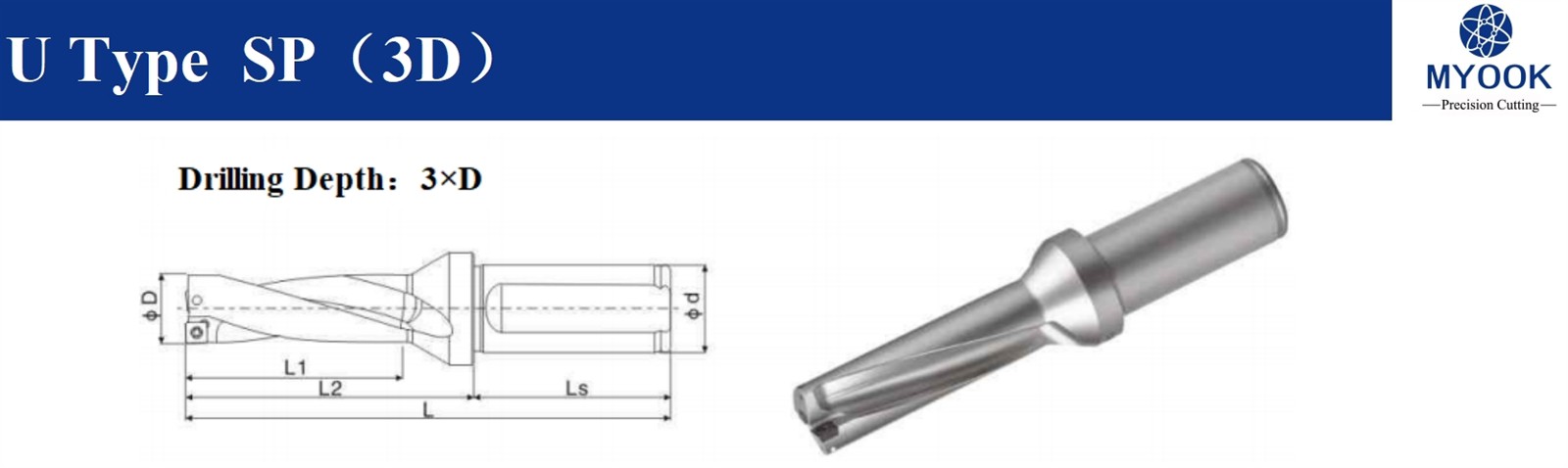

product-1666-497

Tip	Dimensjoni					Inserzjonijiet disponibbli	Kamin	Wrench
Tip	D	d	L1	Ls	L	Inserzjonijiet disponibbli	Kamin	Wrench
C20-3d13-42SP05	13	20	42	44	101	SP 050204	M2×4	T6
C20-3d13.5-44SP05	13.5		44		103
C20-3D14-45SP05	14		45		104
C20-3d14.5-47sp05	14.5		47		106
C20-3D15-48SP05	15		48		107
C20-3d15.5-50sp06	15.5	25	50	44	109	SP 060204	M2.2×5	T7
C20-3d16-51sp06	16		51		110
C20-3d16.5-53sp06	16.5		53		112
C20-3D17-54SP06	17		54		113
C25-3d17.5-56sp06	17.5	25	56	56	127
C25-3D18-57SP06	18		57		128
C25-3D18.5-59SP06	18.5		59		130
C25-3D19-60SP06	19		60		131
C25-3D19.5-62SP06	19.5		62		133
C25-3d20-63SP06	20		63		134
C25-3d20.5-65sp06	20.5		65		136
C25-3D21-66SP06	21		66		137
C25-3D21.5-68SP06	21.5		68		139
C25-3D22-69SP07	22	25	69	56	140	SP 07T308	M2.5×6	T8
C25-3D22.5-71SP07	22.5		71		142
C25-3D23-72SP07	23		72		146
C25-3D23.5-74SP07	23.5		74		148
C25-3D24-75SP07	24		75		149
C25-3D24.5-77SP07	24.5		77		151
C25-3D25-78SP07	25		78		152
C32-3D25.5-80SP07	25.5	32	80	60	160
C32-3D26-81SP07	26		81		161
C32-3D26.5-83SP07	26.5		83		163
C32-3D27-84SP07	27		84		164
C32-3D27.5-86SP07	27.5		86		166
C32-3D28-87SP09	28	32	87	60	167	SP 090408	M3.5×8	T15
C32-3D28.5-89SP09	28.5		89		169
C32-3D29-91SP09	29		91		172
C32-3D29.5-93SP09	29.5		93		174
C32-3D30-94SP09	30		94		178
C32-3D30.5-96SP09	30.5		96		180
C32-3D31-97SP09	31		97		181
C32-3D31.5-99SP09	31.5		99		183
C32-3D32-100SP09	32	32	100	60	184	SP 090408	M3.5×8	T15
C32-3D32.5-102SP09	32.5		102		186
C32-3D33-103SP09	33		103		187
C32-3D33.5-105SP09	33.5		105		189
C32-3D34-106SP11	34	32	106	60	190	SP 110408	M4×10	T15
C32-3D34.5-108SP11	34.5		108		192
C32-3D35-109SP11	35		109		193
C32-3D35.5-111SP11	35.5		111		195
C32-3D36-112SP11	36		112		196
C32-3D36.5-114SP11	36.5		114		198
C32-3D37-116SP11	37		116		206
C32-3D37.5-118SP11	37.5		118		207
C32-3D38-119SP11	38		119		209
C32-3D38.5-121SP11	38.5		121		211
C32-3D39-122SP11	39		122		212
C32-3D39.5-124SP11	39.5		124		214
C40-3D40-125SP11	40	40	125	70	225
C40-3D41-128SP11	41		128		228
C40-3D42-131SP14	42		131		231	SP 140512	M5×11	T20
C40-3D43-134SP14	43		134		234
C40-3D44-137SP14	44		137		237
C40-3D45-140SP14	45		140		240
C40-3D46-143SP14	46		143		243
C40-3D47-146SP14	47		146		246
C40-3D48-149SP14	48		149		249
C40-3D49-152SP14	49		152		252
C40-3D50-155SP14	50		155		255
C40-3D51-158SP09	51	40	158	70	258	SP_090408	M3.5×8	T15
C40-3D52-161SP09	52		161		261
C40-3D53-164SP09	53		164		264
C40-3D54-167SP09	54		167		267
C40-3D55-170SP09	55		170		270
C40-3D56-173SP09	56		176		278
C40-3D57-179SP09	57		179		281
C40-3D58-182SP09	58		182		284
C40-3D59-185SP09	59		185		287
C40-3D60-188SP09	60		188		290

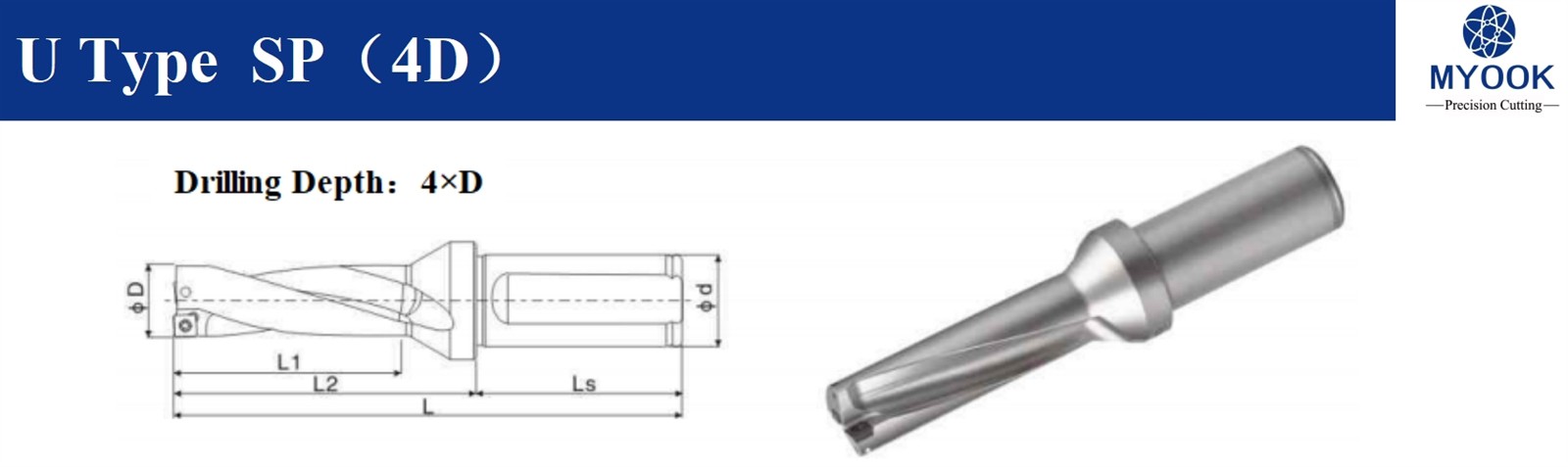

product-1674-499

Tip	Dimensjoni					Inserzjonijiet disponibbli	Kamin	Wrench
Tip	D	d	L1	Ls	L	Inserzjonijiet disponibbli	Kamin	Wrench
C20-4d13-55SP05	13	20	55	44	114	SP 050204	M2×4	T6
C20-4d13.5-57sp05	13.5		57		116
C20-4D14-59SP05	14		59		118
C20-4d14.5-61SP05	14.5		61		120
C20-4D15-63SP05	15		63		122
C20-4d15.5-65SP06	15.5	25	65	44	124	SP 060204	M2.2×5	T7
C20-4d16-67sp06	16		67		126
C20-4d16.5-69sp06	16.5		69		128
C20-4d17-71SP06	17		71		130
C25-4D17.5-73SP06	17.5	25	73	56	144
C25-4D18-75SP06	18		75		146
C25-4D18.5-77SP06	18.5		77		148
C25-4D19-79SP06	19		79		150
C25-4D19.5-81SP06	19.5		81		152
C25-4d20-83SP06	20		83		154
C25-4d20.5-85SP06	20.5		85		156
C25-4D21-87SP06	21		87		158
C25-4D21.5-89SP06	21.5		89		160
C25-4D22-91SP07	22	25	91	56	162	SP_07T308	M2.5×6	T8
C25-4D22.5-93SP07	22.5		93		164
C25-4D23-95SP07	23		95		169
C25-4D23.5-97SP07	23.5		97		171
C25-4D24-99SP07	24		99		173
C25-4D24.5-101SP07	24.5		101		175
C25-4D25-103SP07	25		103		177
C32-4D25.5-105SP07	25.5	32	105	60	185
C32-4D26-107SP07	26		107		187
C32-4D26.5-109SP07	26.5		109		189
C32-4D27-111SP07	27		111		191
C32-4D27.5-113SP07	27.5		113		193
C32-4D28-115SP09	28	32	115	60	195	SP_090408	M3.5×8	T15
C32-4D28.5-117SP09	28.5		117		197
C32-4D29-120SP09	29		120		201
C32-4D29.5-122SP09	29.5		122		203
C32-4D30-124SP09	30		124		208
C32-4D30.5-126SP09	30.5		126		210
C32-4D31-128SP09	31		128		212
C32-4D31.5-130SP09	31.5		130		214
C32-4D32-132SP09	32	32	132	60	216	SP 090408	M3.5×8	T15
C32-4D32.5-134SP09	32.5		134		218
C32-4D33-136SP09	33		136		220
C32-4D33.5-138SP09	33.5		138		222
C32-4D34-140SP11	34	32	140	60	224	SP_110408	M4×10	T15
C32-4D34.5-142SP11	34.5		142		226
C32-4D35-144SP11	35		144		228
C32-4D35.5-146SP11	35.5		146		230
C32-4D36-148SP11	36		148		232
C32-4D36.5-150SP11	36.5		150		234
C32-4D37-152SP11	37		153		243
C32-4D37.5-155SP11	37.5		155		245
C32-4D38-157SP11	38		157		247
C32-4D38.5-159SP11	38.5		159		249
C32-4D39-161SP11	39		161		251
C32-4D39.5-163SP11	39.5		163		253
C40-4D40-165SP11	40	40	165	70	265
C40-4D41-169SP11	41		169		269
C40-4D42-173SP14	42		173		273	SP 140512	M5×11	T20
C40-4D43-177SP14	43		177		277
C40-4D44-181SP14	44		181		281
C40-4D45-185SP14	45		185		285
C40-4D46-189SP14	46		189		289
C40-4D47-193SP14	47		193		293
C40-4D48-197SP14	48		197		297
C40-4D49-201SP14	49		201		301
C40-4D50-205SP14	50		205		305
C40-4D51-209SP09	51	40	209	70	309	SP_090408	M3.5×8	T15
C40-4D52-213SP09	52		213	70	313
C40-4D53-217SP09	53		217		317
C40-4D54-221SP09	54		221		321
C40-4D55-225SP09	55		225		325
C40-4D56-232SP09	56		232		334
C40-4D57-236SP09	57		236		338
C40-4D58-240SP09	58		240		342
C40-4D59-244SP09	59		244		346
C40-4D60-248SP09	60		248		350

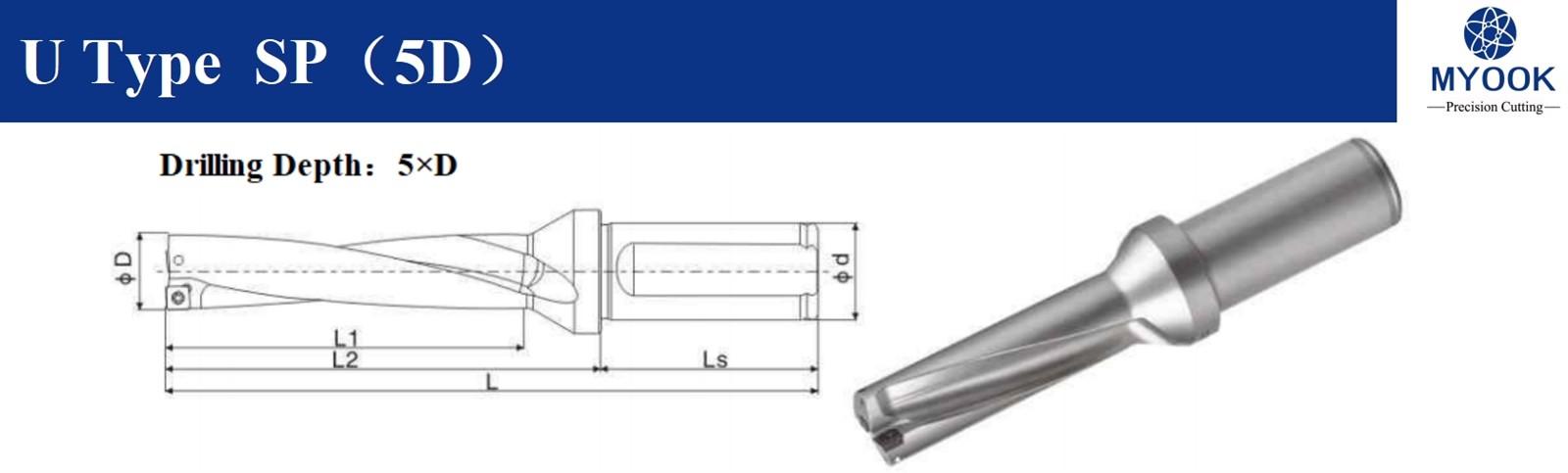

product-1677-506

Tip	Dimensjoni					Inserzjonijiet disponibbli	Kamin	Wrench
Tip	D	d	L1	Ls	L	Inserzjonijiet disponibbli	Kamin	Wrench
C20-5D16-83SP06	16	20	83	44	142	SP 060204	M2.2×5	T7
C20-5D16.5-86SP06	16.5		86		145
C20-5D17-88SP06	17		88		147
C20-5D17.5-91SP06	17.5	25	91	56	162
C25-5D18-939SP06	18		93		164
C25-5D18.5-96SP06	18.5		96		167
C25-5D19-98SP06	19		98		169
C25-5D19.5-101SP06	19.5		101		172
C25-5D20-103SP06	20		103		174
C25-5D20.5-106SP06	20.5		106		177
C25-5D21-108SP06	21		108		179
C25-5D21.5-111SP06	21.5		111		182
C25-5D22-113SP07	22	25	113	56	184	SP 07T308	M2.5×6	T8
C25-5D22.5-116SP07	22.5		116		187
C25-5D23-118SP07	23		118		192
C25-5D23.5-121SP07	23.5		121		195
C25-5D24-123SP07	24		123		197
C25-5D24.5-126SP07	24.5		126		200
C25-5D25-128SP07	25		128		202
C32-5D25.5-130SP07	25.5	32	130	60	213
C32-5D26-133SP07	26		133		216
C32-5D26.5-136SP07	26.5		136		218
C32-5D27-138SP07	27		138		219
C32-5D27.5-141SP07	27.5		141		221
C32-5D28-143SP09	28	32	143	60	223	SP_090408	M3.5×8	T15
C32-5D28.5-146SP09	28.5		146		226
C32-5D29-149SP09	29		149		230
C32-5D29.5-151SP09	29.5		151		233
C32-5D30-154SP09	30		154		238
C32-5D30.5-157SP09	30.5		157		241
C32-5D31-159SP09	31		159		243
C32-5D31.5-162SP09	31.5		162		245
C32-5D32-164SP09	32	32	164	60	248	SP 090408	M3.5×8	T15
C32-5D32.5-167SP09	32.5		167		251
C32-5D33-169SP09	33		169		253
C32-5D33.5-172SP09	33.5		172		255
C32-5D34-174SP11	34	32	174	60	258	SP 110408	M4×10	T15
C32-5D34.5-177SP11	34.5		177		261
C32-5D35-179SP11	35		179		263
C32-5D35.5-182SP11	35.5		182		265
C32-5D36-184SP11	36		184		268
C32-5D36.5-187SP11	36.5		187		271
C32-5D37-190SP11	37		190		280
C32-5D37.5-193SP11	37.5		193		283
C32-5D38-195SP11	38		195		285
C32-5D38.5-198SP11	38.5		198		288
C32-5D39-200SP11	39		200		290
C32-5D39.5-203SP11	39.5		203		293
C40-5D40-205SP11	40	40	205	70	305
C40-5D41-210SP11	41		210		310
C40-5D42-215SP14	42		215		315	SP 140512	M5×11	T20
C40-5D43-220SP14	43		220		320
C40-5D44-225SP14	44		225		325
C40-5D45-230SP14	45		230		330
C40-5D46-235SP14	46		235		335
C40-5D47-240SP14	47		240		340
C40-5D48-245SP14	48		245		345
C40-5D49-250SP14	49		250		350
C40-5D50-255SP14	50		255		355
C40-5D51-260SP09	51	40	260	70	360	SP 090408	M3.5×8	T15
C40-5D52-265SP09	52		265	70	365
C40-5D53-270SP09	53		270		370
C40-5D54-275SP09	54		275		375
C40-5D55-280SP09	55		280		380
C40-5D56-285SP09	56		285		385
C40-5D57-290SP09	57		290		390
C40-5D58-295SP09	58		295		395
C40-5D59-300SP09	59		300		400
C40-5D60-305SP09	60		305		405

Profil tal-Kumpanija

Myook Machinery Cutting Tools Group huwa l-manifattur professjonali ta 'l-Accesorries tal-Magni CNC u l-Għodda tal-Qtugħ tal-Magni CNC li għamlu fiċ-Ċina. Dan jinkludi Wuhan Sqin Technology Company u Wuhan Myook Machinery Co., Ltd. Għandha erba 'prodotti tas-serje:
A.inserts u detenturi tal-għodda
B. Preċiżjoni Għodda għat-Toqob
C.Accessories tal-magna CNC
Xfafar u skieken d.cutting
Il-prodotti huma applikati f'firxa wiesgħa ta 'applikazzjonijiet, speċjalment il-karozzi, l-ajruspazju, l-elettronika, l-industriji tad-die & moffa eċċ. Magni fuq l-aluminju, l-azzar, l-istainless steel, plastik, ġebel, ġebel, marbles, boskijiet, karti eċċ. Il-kumpanija tgawdi minnha nnifisha - prodotti tajbin appoġġjati u esportazzjoni ta' prodotti tajbin u esportazzjoni, l-Italja, l-Italja, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain, Spain. reġjuni. Aħna impenjati li nipprovdu spiża - prodotti effettivi u bejgħ eċċellenti pre - u wara - servizz ta 'bejgħ lill-ħbieb tagħna.
Wuhan Myook Machinery Co, Ltd hija kumpanija sussidjarja tal-Grupp tal-Għodda tal-Qtugħ tal-Makkinarju Myook, li tieħu ħsieb l-esportazzjoni tal-prodotti kollha tagħna.
※ Aktar minn 30 sena esperjenza industrijali
※ Tim ta 'R & D professjonali
※ Tim ta 'Bejgħ u Servizzi Professjonali

Vantaġġi

Vantaġġi:
1. Għall-azzar, l-istainless steel, l-ipproċessar tal-ħadid fondut
2. Ir-reżistenza eċċellenti għall-ilbies u r-reżistenza għall-ksur
3. Spezzjoni Professjonali u Preċiżjoni Għolja
4. Precison għoli, sostituzzjoni faċli, użu ġenerali

C32-2D30-64WC05

Inklużi inserzjonijiet tal-karbur, inserzjonijiet Cermet, inserzjonijiet CBN u inserzjonijiet PCD. U d-detenturi tal-għodda tat-tidwir u d-detentur tal-għodda tat-tħin (għal magni esterni u interni), detentur tal-għodda tal-kamin, detentur tal-għodda grooving. Id-daqsijiet kollha ta 'inserzjonijiet tal-karbur biex jaqblu.

It-tags Popolari: C32 u - detentur tad-drill, u drill
